Deploying macOS apps with the Intune scripting agent

by Contributed | Apr 27, 2021 | Technology

This article is contributed. See the original author and article here.

By Neil Johnson – Principal Program Manager | Microsoft Endpoint Manager – Intune

The recommended methods of deploying apps with Microsoft Intune are the built-in app deployment features for Edge, Office and Defender. We also support Mac App Store and line-of-business apps. However, there are occasions where an application you need is not made by Microsoft, is not in the Mac App Store, and is not supported by the Intune line of business App Wrapping Tool.

Before we get into the details, it’s important that you understand the supportability of the process we are about to discuss:

Important: From a support perspective, Microsoft fully supports Intune and its ability to deploy shell scripts to macOS. However, Microsoft does not support the scripts themselves, even if they are on our GitHub repository. They are provided for example only and you are responsible for anything that they may do within your environment. Always test!

For the remainder of this post, I’m going to walk you through an example for how to approach the scenario where you need to do a bit of scripting. The steps we’re going to take are as follows:

1. Identify a web location from which to download the app.


2. Write a bash script to download the installer and install the app.


3. Deploy the bash script using the Intune scripting agent.

Again, please do see the caveat above regarding supportability and also testing! I work with several customers who are really familiar with scripting and deploying so I’m sharing best practices and a few things we’ve all learned along the way.

Example Application Deployment: GNU Imagine Manipulation Program (GIMP)

We’re using Gimp here for a simple example. Gimp you can completely deploy following the steps outlined in our app wrapping post. The app makes a great example, too, to deploy through the scripting agent.

Step 1 – Obtaining the binary

First things first, we need to get a copy of Gimp. To do that we’ll head to the Gimp website and download the latest stable version. Save the file as gimp.dmg in the Downloads directory.

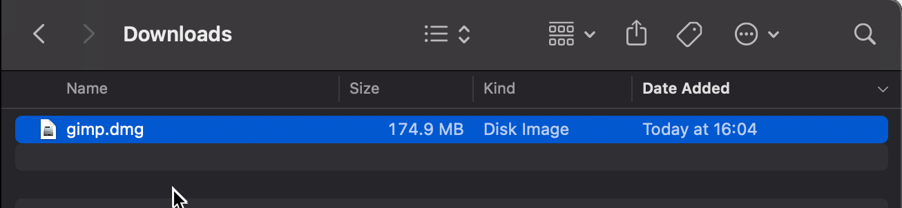

Screenshot of the gimp.dmg macOS app in the Downloads directory

Step 2 – Uploading to Azure Blob storage

Now that we have our installation file, we can upload to Azure so it’s ready for us to use. Setting up Azure Blob storage is outside the scope of this article, but you can find documentation here: Introduction to blob storage – Azure Storage | Microsoft Docs.

Note: It is not a requirement to use Azure storage – see the note on download URL later in this post.

Upload gimp.dmg to Azure Blob storage:

1. Go to portal.azure.com > Storage Accounts > “your storage account” and select the container you wish to use for macOS app deployments.


2. Click Upload > Provide the file path to gimp.dmg and click upload again.


3. Once uploaded, you will see your file listed in the container.

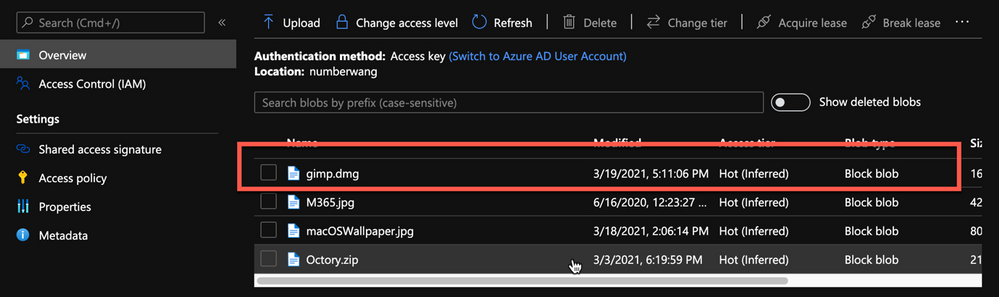

   Example of gimp.dmg uploaded in an Azure storage account



4. Click on gimp.dmg and make a note of the URL in the properties. In my case, the URL is https://neiljohn.blob.core.windows.net/macapps/gimp.dmg

Note on Blob storage security: If you do not want to permit anonymous access to your Blob storage binaries you can set the access level to your container to ‘Private’ (no anonymous access) and generate a SAS access URL instead. The rest of this process will remain the same but the URL you use will have additional information encoded at the end.

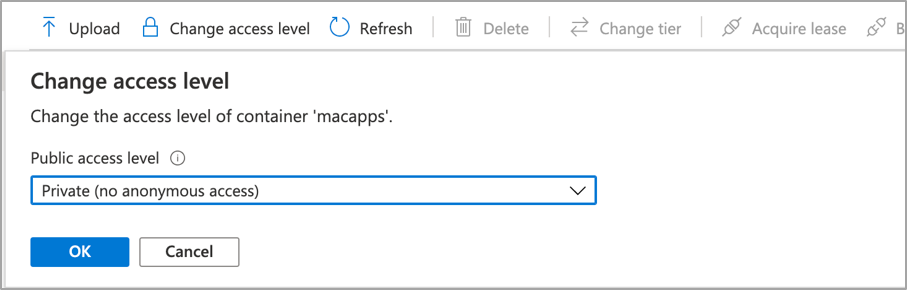

Screenshot showing that setting container “macapps” public access level is Private when public access disallowed

Note on download URLs: If you don’t have Azure Blob storage, you can use the public download URL for Gimp from their website here instead. I like using Azure because it gives us more control over the process and the version that we install, but the rest of the process in this post will work fine using either Azure Blob storage or the public download URL from the Gimp servers.

Step 3 – Write the bash script to download and install Gimp

In this section we will walk through an example shell script from the Intune Shell Script GitHub Repository to download and install Gimp.

We’re going to require a couple of things before we begin:

1. Download the example installGimp.sh file from here and save it to your local drive.


2. Download and install a copy of Visual Studio Code.

Open the installGimp.sh file in Visual Studio Code. The bits we might want to change are shown on lines 20-27. These variables control how the script will behave. Let’s look at them in some more detail.

# User Defined variables
weburl="https://neiljohn.blob.core.windows.net/macapps/gimp.dmg"
appname="Gimp"
app="Gimp.app"
logandmetadir="/Library/Logs/Microsoft/IntuneScripts/installGimp"
processpath="/Applications/Gimp.app/Contents/MacOS/gimp"
terminateprocess="false"
autoupdate=”false”

• weburl is the http URL of the installation files that we need. In this example we are using Azure Blob storage to host the file, but it could be any http endpoint that will be accessible from the client. The script will attempt to autodetect the installer type based on the file that is downloaded.


• appname is mostly used in the log, but is also used to generate the metadata file path for storing the last updated date.


• app is the actual name of the Application. It is used by the script to check if the app is already installed. The script will copy the application files found on the DMG to /Applications/$app. The best way to find out what this should be set to is to install the application manually on your Mac and then run ls -la /Applications from a terminal prompt and use the same name in the app variable.


• logandmetadir this is the directory that the script will use to store the installation log and to store the metadata for the last version update. This should be unique for each application that you deploy.


• processpath this is used to check if the application is running or not. Mac applications have a strict directory format, so one of the quickest methods is to run ls -Fl /Applications/Gimp.app/Contents/MacOS/*. This will return a list of files, it’s usually easy to guess which one is the main application by the name, in our case /Applications/Gimp.app/Contents/MacOS/gimp.


• terminateprocess is used to control what the script does if it finds the application is running. If this value is set to false, the script will check for the applications process and wait for it to be closed before installing. If the value is set to true, the script will detect that the application is running and terminate the main process before installing. For most end user applications leave this set to false.


• autoupdate is used to control how the script behaves when it’s run after the app is installed. If autoupdate is set to true the script will exit since it assumes that the app will handle updates itself. If set to false, the script will compare current and last update times on the URL header and update if there is a newer version.

For this example, the only thing that you need to change here is the weburl to your Azure Blob storage location (or use the public download URL https://download.gimp.org/mirror/pub/gimp/v2.10/osx/gimp-2.10.22-x86_64-3.dmg). The rest of the script can be left as is, but it is a good idea to read through it to ensure that you understand what it does.

Now we have our script, we need to test it. The easiest way to do that is to run it on a test device.

We need to make the script executable with chmod which we will run in a terminal window.

Neils-MacBook-Pro:Gimp neiljohnson$ chmod +x ~/Downloads/installGimp.sh

 Next, we can give the script a test run to check that it works. We need to run it as root so don’t forget the sudo command.

Neils-MacBook-Pro:Gimp % sudo ./installGimp.sh

Fri  9 Apr 2021 15:12:42 BST | Creating [/Library/Logs/Microsoft/IntuneScripts/installGimp] to store logs

##

# Fri  9 Apr 2021 15:12:42 BST | Logging install of [Gimp] to [/Library/Logs/Microsoft/IntuneScripts/installGimp/Gimp.log]



Fri  9 Apr 2021 15:12:42 BST | Checking if we need Rosetta 2 or not
Fri  9 Apr 2021 15:12:42 BST | Waiting for other [/usr/sbin/softwareupdate] processes to end
Fri  9 Apr 2021 15:12:42 BST | No instances of [/usr/sbin/softwareupdate] found, safe to proceed
Fri  9 Apr 2021 15:12:42 BST | [Intel(R) Core(TM) i9-9880H CPU @ 2.30GHz] found, Rosetta not needed
Fri  9 Apr 2021 15:12:42 BST | Checking if we need to install or update [Gimp]
Fri  9 Apr 2021 15:12:42 BST | [Gimp] not installed, need to download and install
Fri  9 Apr 2021 15:12:42 BST | Dock is here, lets carry on
Fri  9 Apr 2021 15:12:42 BST | Starting downlading of [Gimp]
Fri  9 Apr 2021 15:12:42 BST | Waiting for other [curl] processes to end
Fri  9 Apr 2021 15:12:42 BST | No instances of [curl] found, safe to proceed
Fri  9 Apr 2021 15:12:42 BST | Downloading Gimp
Fri  9 Apr 2021 15:13:13 BST | Downloaded [Gimp.app] to [/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/tmp.WlgvmHH8/gimp.dmg]
Fri  9 Apr 2021 15:13:13 BST | Detected install type as [DMG]
Fri  9 Apr 2021 15:13:13 BST | Waiting for other [/Applications/Gimp.app/Contents/MacOS/gimp] processes to end
Fri  9 Apr 2021 15:13:13 BST | No instances of [/Applications/Gimp.app/Contents/MacOS/gimp] found, safe to proceed
Fri  9 Apr 2021 15:13:13 BST | Waiting for other [installer -pkg] processes to end
Fri  9 Apr 2021 15:13:13 BST | No instances of [installer -pkg] found, safe to proceed
Fri  9 Apr 2021 15:13:13 BST | Waiting for other [rsync -a] processes to end
Fri  9 Apr 2021 15:13:13 BST | No instances of [rsync -a] found, safe to proceed
Fri  9 Apr 2021 15:13:13 BST | Waiting for other [unzip] processes to end
Fri  9 Apr 2021 15:13:13 BST | No instances of [unzip] found, safe to proceed
Fri  9 Apr 2021 15:13:13 BST | Installing [Gimp]
Fri  9 Apr 2021 15:13:13 BST | Mounting Image
Fri  9 Apr 2021 15:13:30 BST | Copying app files to /Applications/Gimp.app
Fri  9 Apr 2021 15:22:28 BST | Un-mounting [/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/tmp.WlgvmHH8/Gimp]
Fri  9 Apr 2021 15:22:28 BST | [Gimp] Installed
Fri  9 Apr 2021 15:22:28 BST | Cleaning Up
Fri  9 Apr 2021 15:22:28 BST | Fixing up permissions
Fri  9 Apr 2021 15:22:30 BST | Application [Gimp] succesfully installed
Fri  9 Apr 2021 15:22:31 BST | Writing last modifieddate [Tue, 06 Apr 2021 14:04:10 GMT] to [/Library/Logs/Microsoft/IntuneScripts/installGimp/Gimp.meta]

Once that’s done, try to launch the Gimp application to check that it installed correctly and that it works ok. Press CMD+Space and type in ‘Gimp’, then press Return. The Gimp splash screen should appear, and the application should start.

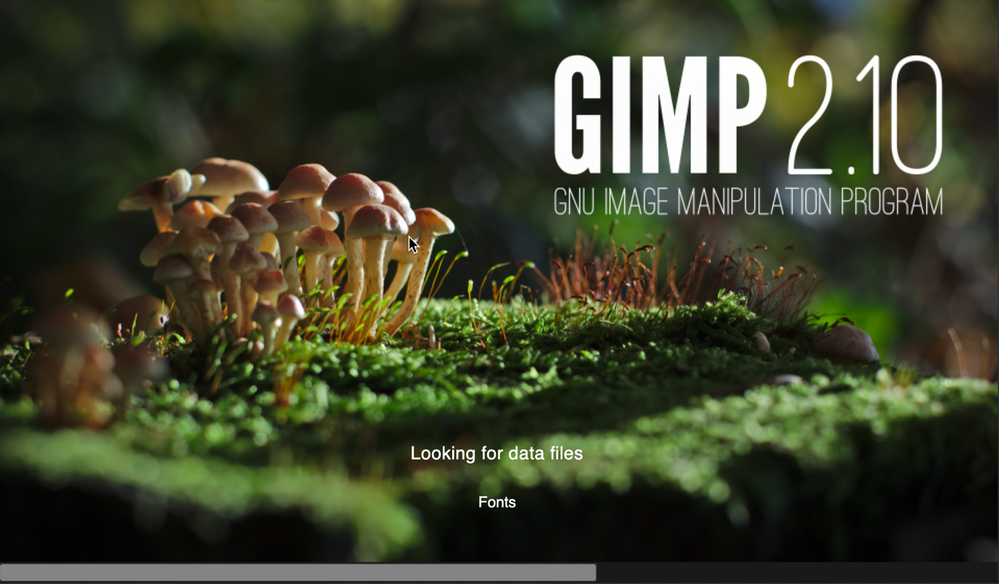

Screenshot of the GIMP splash screen

Assuming everything went well to this point, all we need to do now is to deploy the script via Intune.

Step 4 – Deploy the bash script via the Intune scripting agent.

At this point we have a script that we’re confident works when we run it locally and so the next step is to upload it to Intune and assign it to some test users to check that it behaves as we expect when it’s run via the Intune Scripting Agent.

To deploy the script via Intune:

1. Sign in to the Microsoft Endpoint Manager admin center.


2. Select Devices > macOS > Shell scripts > Add


3. Enter a Name and Description for the script and click Next


4. Enter the script details



   • Select the ~/Downloads/InstallGimp.sh script file


   • Run script as signed in user: No


   • Hide script notification on devices: Yes


   • Script frequency: Every 1 day (this is to handle updates, more on this later)



   • Number of times to retry if script fails: 3

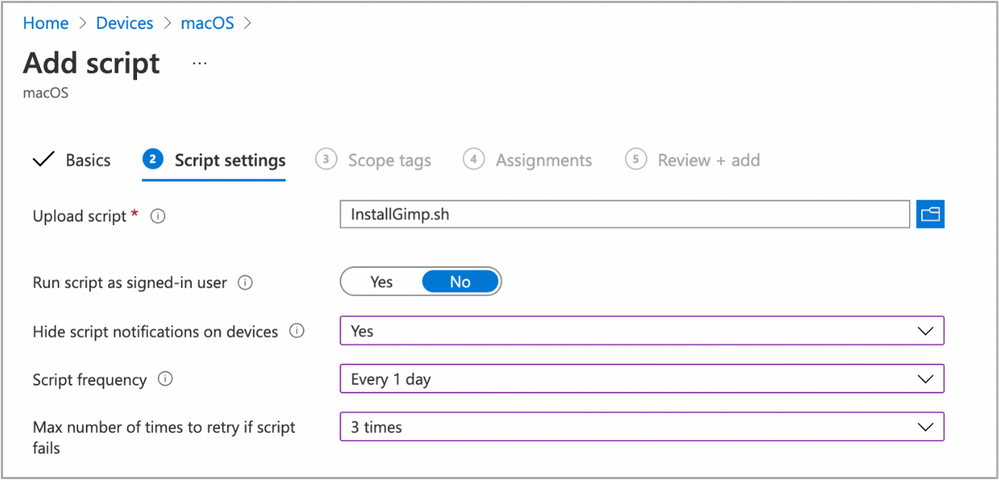

     Example script properties for macOS scripts in Intune








5. Click Next.


6. Assign Scope Tags if you need them, click Next.


7. Under Required click Add group and search for an appropriate group to target the script to. Note: At this stage a test group would probably be wise.


8. Click Next, review and then Add to complete the assignment.

   Next, we need to find a test device that we can use to check the deployment on.




9. Identify a test device that is enrolled into Intune as a user in the group that you assigned the script to.


10. On that device press CMD+Space and type ‘Company Portal’ and press Enter.


11. If prompted, click Sign In and enter the users’ credentials.


12. In the Company Portal app, press Option+CMD+S to trigger a device check-in. Note, doing this on the device via Company Portal calls the script agent to check-in. Also, if you do this from the Microsoft Endpoint Manager admin center, the script agent will not check-in at the same time.

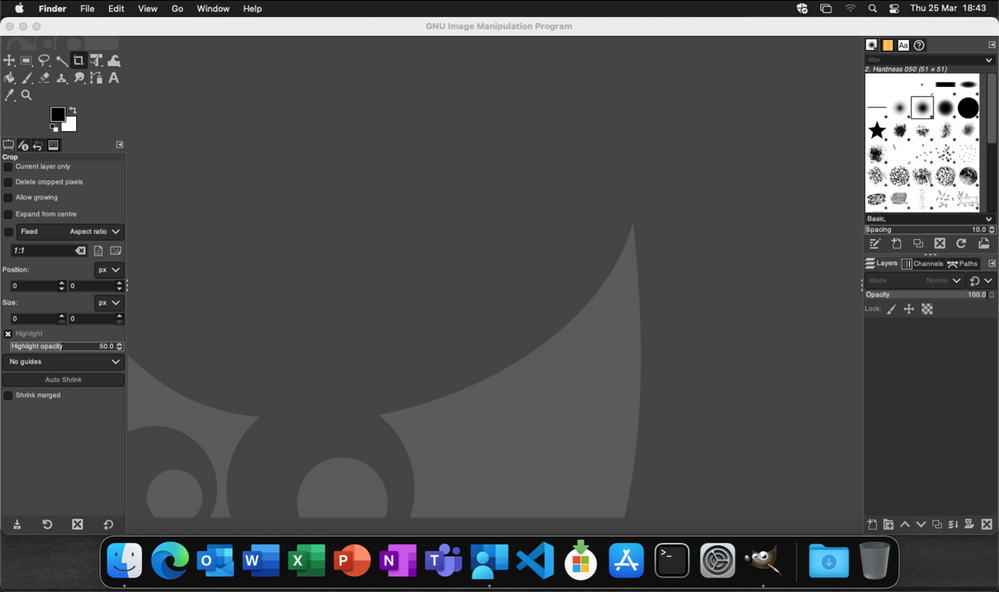

The final step on the client Mac is to check that the app has installed, and we can launch it. Press CMD+Space and type “Gimp” and press Enter. The Gimp app should launch.

Example of launching the Gimp app to validate app installation on a macOS device

At this stage we’re happy that the script deploys the app successfully. All that is left is to set the assignment policy of the script to include all the users that you need to install the Gimp app to.

Handling version updates

Some apps handle updates automatically and some apps don’t. For this example, Gimp doesn’t automatically update so we’re going to need to handle that. Luckily, the example script already handles updates so all that we need to do is to upload a newer version of gimp.dmg to Blob storage or change the URL in the script to a newer version on the Gimp website. It’s really that simple.

If you want more detail, when we created our script policy in Intune, we set the schedule to run every day. To prevent the script from installing Gimp every time it runs, there are a few functions to handle updates and downloads.

• updateCheck()
  This function first checks the autoupdate variable. If set to true and the app is already installed, the script exits, If set to false it compares the last-modified http header of the file that we downloaded to install last time against the current last-modified date of the download URL. If the dates are the same, the script drops out with nothing to do. If they are different, the script will attempt to download and install the update.

• waitForProcess()
  This function is called just before the app is installed. It pauses the script while the given process is running. If the app is running the script will wait until it is closed by the end user. The end user is not prompted, the script will run silently in the background. If you set terminateprocess=”true” the function will attempt to terminate the app.

We can see these functions in action simply by running the script twice. On a test machine, if we download installGimp.sh and run it twice, on the second time through we’ll see the following log entry.

Neils-MacBook-Pro:Gimp % % sudo ./installGimp.sh

##
# Tue  6 Apr 2021 14:46:09 BST | Logging install of [Gimp] to [/Library/Logs/Microsoft/IntuneScripts/installGimp/Gimp.log]


Tue  6 Apr 2021 14:46:09 BST | Checking if we need Rosetta 2 or not
Tue  6 Apr 2021 14:46:09 BST | [Intel(R) Core(TM) i9-9880H CPU @ 2.30GHz] found, Rosetta not needed
Tue  6 Apr 2021 14:46:09 BST | Checking if we need to install or update [Gimp]
Tue  6 Apr 2021 14:46:09 BST | [Gimp] already installed, let's see if we need to update
Tue  6 Apr 2021 14:46:10 BST | No update between previous [Tue, 06 Apr 2021 12:03:05 GMT] and current [Tue, 06 Apr 2021 12:03:05 GMT]
Tue  6 Apr 2021 14:46:10 BST | Exiting, nothing to do

We can see from the log that there has been no update and so the script doesn’t re-install Gimp.

To show the update process working, update the gimp.dmg file in Azure Blob storage. Repeat steps 1 and 2 above.

1. Download the application DMG.


2. Upload the DMG to Azure Blob storage.

During step 2, make sure that you use the same file name and that you check the Overwrite if files already exist checkbox.

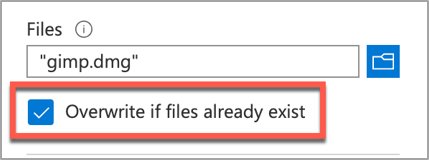

Screenshot of the Overwrite if files already exist checkbox option in Intune

Once the upload is complete, re-run the script on the test device.

Neils-MacBook-Pro:Gimp % sudo ./installGimp.sh

##
# Tue  6 Apr 2021 15:05:23 BST | Logging install of [Gimp] to [/Library/Logs/Microsoft/IntuneScripts/installGimp/Gimp.log]


Tue  6 Apr 2021 15:05:23 BST | Checking if we need Rosetta 2 or not
Tue  6 Apr 2021 15:05:23 BST | [Intel(R) Core(TM) i9-9880H CPU @ 2.30GHz] found, Rosetta not needed
Tue  6 Apr 2021 15:05:23 BST | Checking if we need to install or update [Gimp]
Tue  6 Apr 2021 15:05:23 BST | [Gimp] already installed, let's see if we need to update
Tue  6 Apr 2021 15:05:23 BST | Update found, previous [Tue, 06 Apr 2021 12:03:05 GMT] and current [Tue, 06 Apr 2021 14:04:10 GMT]
Tue  6 Apr 2021 15:05:23 BST | Starting downlading of [Gimp]
Tue  6 Apr 2021 15:05:23 BST | Waiting for other Curl processes to end
Tue  6 Apr 2021 15:05:23 BST | No instances of Curl found, safe to proceed
Tue  6 Apr 2021 15:05:23 BST | Octory found, attempting to send status updates
Tue  6 Apr 2021 15:05:23 BST | Updating Octory monitor for [Gimp] to [installing]
Tue  6 Apr 2021 15:05:24 BST | Downloading Gimp
Tue  6 Apr 2021 15:06:00 BST | Downloaded [Gimp.app]
Tue  6 Apr 2021 15:06:00 BST | Checking if the application is running
Tue  6 Apr 2021 15:06:00 BST | [Gimp] isn't running, lets carry on
Tue  6 Apr 2021 15:06:00 BST | Installing [Gimp]
Tue  6 Apr 2021 15:06:00 BST | Octory found, attempting to send status updates
Tue  6 Apr 2021 15:06:00 BST | Updating Octory monitor for [Gimp] to [installing]
Tue  6 Apr 2021 15:06:00 BST | Mounting [/tmp/gimp.dmg] to [/tmp/Gimp]
Tue  6 Apr 2021 15:06:21 BST | Copying /tmp/Gimp/*.app to /Applications/Gimp.app
Tue  6 Apr 2021 15:15:43 BST | Un-mounting [/tmp/Gimp]
Tue  6 Apr 2021 15:15:44 BST | [Gimp] Installed
Tue  6 Apr 2021 15:15:44 BST | Cleaning Up
Tue  6 Apr 2021 15:15:44 BST | Fixing up permissions
Tue  6 Apr 2021 15:15:46 BST | Application [Gimp] succesfully installed
Tue  6 Apr 2021 15:15:46 BST | Writing last modifieddate [Tue, 06 Apr 2021 14:04:10 GMT] to [/Library/Logs/Microsoft/IntuneScripts/installGimp/Gimp.meta]
Tue  6 Apr 2021 15:15:46 BST | Octory found, attempting to send status updates

Adapting the example script to something else: Yammer

We have our Gimp script working as we want, but what about other installer files? In this example, we are going to look at modifying the InstallGimp.sh script to handle Yammer, which is also provided as a DMG file.

The completed script for Yammer is available here. If we look at a comparison of changes between the installGimp.sh and installYammer.sh scripts, we can see that the only differences are on lines 21-27.

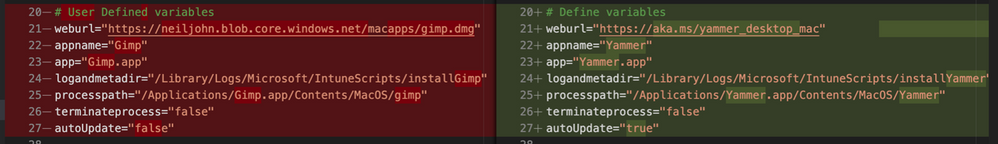

Comparison of changes between the installGimp.sh and installYammer.sh scripts

The changes on line 6 are just a description of the script. Lines 20-27 are variables that are discussed in more detail in Step 3 above.

# User Defined variables
weburl="https://aka.ms/yammer_desktop_mac"
appname="Yammer"
app="Yammer.app"
logandmetadir="/Library/Logs/Microsoft/IntuneScripts/installYammer"
processpath="/Applications/Yammer.app/Contents/MacOS/Yammer"
terminateprocess="false"
autoUpdate=”false”

Note: That in this example we are not using Azure blob storage but the normal download URL for Yammer. After editing the script we then follow the steps in Step 4 – Deploy the bash script via the Intune scripting agent above. Once deployed, we can go to the Mac and trigger a manual check-in and then check the logs on our target Mac.

For Yammer, our new policy ID is: 010f31ef-1cfc-441b-a409-fc75e838c5d0

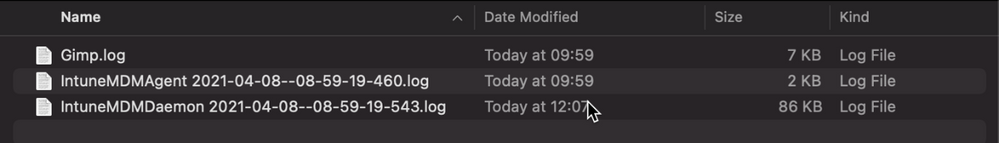

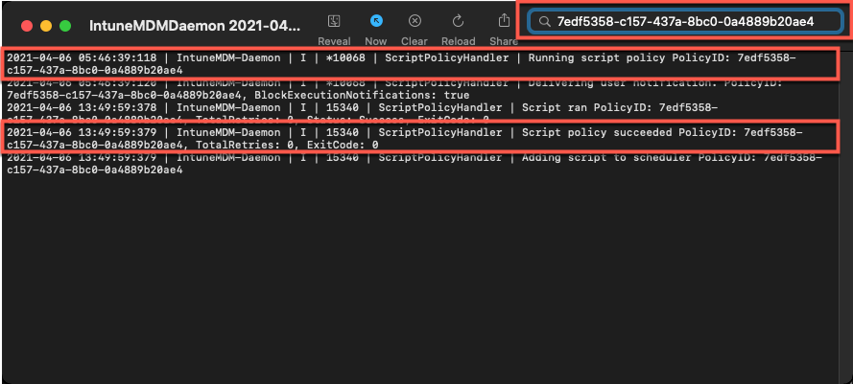

From the IntuneMDMDaemon*.log file we see the following:

IntuneMDM-Daemon | I | *10068 | ScriptPolicyHandler | Running script policy PolicyID: 010f31ef-1cfc-441b-a409-fc75e838c5d0
IntuneMDM-Daemon | I | *10068 | ScriptPolicyHandler | Delivering user notification. PolicyID: 010f31ef-1cfc-441b-a409-fc75e838c5d0, BlockExecutionNotifications: true
IntuneMDM-Daemon | I | 12959 | ScriptPolicyHandler | Script ran PolicyID: 010f31ef-1cfc-441b-a409-fc75e838c5d0, TotalRetries: 0, Status: Success, ExitCode: 0
IntuneMDM-Daemon | I | 12959 | ScriptPolicyHandler | Script policy succeeded PolicyID: 010f31ef-1cfc-441b-a409-fc75e838c5d0, TotalRetries: 0, ExitCode: 0
IntuneMDM-Daemon | I | 12959 | ScriptPolicyHandler | Adding script to scheduler PolicyID: 010f31ef-1cfc-441b-a409-fc75e838c5d0

And from the /Library/Logs/Microsoft/IntuneScripts/installYammer/Yammer.log we see the following:

Sat 10 Apr 2021 17:38:30 BST | Creating [/Library/Logs/Microsoft/IntuneScripts/installYammer] to store logs

##
# Sat 10 Apr 2021 17:38:30 BST | Logging install of [Yammer] to [/Library/Logs/Microsoft/IntuneScripts/installYammer/Yammer.log]


Sat 10 Apr 2021 17:38:30 BST | Checking if we need Rosetta 2 or not
Sat 10 Apr 2021 17:38:30 BST | Waiting for other [/usr/sbin/softwareupdate] processes to end
Sat 10 Apr 2021 17:38:30 BST | No instances of [/usr/sbin/softwareupdate] found, safe to proceed
Sat 10 Apr 2021 17:38:30 BST | [Intel(R) Core(TM) i9-9880H CPU @ 2.30GHz] found, Rosetta not needed
Sat 10 Apr 2021 17:38:30 BST | Checking if we need to install or update [Yammer]
Sat 10 Apr 2021 17:38:30 BST | [Yammer] not installed, need to download and install
Sat 10 Apr 2021 17:38:30 BST | Dock is here, lets carry on
Sat 10 Apr 2021 17:38:30 BST | Starting downlading of [Yammer]
Sat 10 Apr 2021 17:38:30 BST | Waiting for other [curl] processes to end
Sat 10 Apr 2021 17:38:30 BST | No instances of [curl] found, safe to proceed
Sat 10 Apr 2021 17:38:30 BST | Downloading Yammer
Sat 10 Apr 2021 17:38:49 BST | Unknown file type [/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/tmp.U6LKs7Fb/yammer_desktop_mac], analysing metadata
Sat 10 Apr 2021 17:38:49 BST | Downloaded [Yammer.app] to [/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/tmp.U6LKs7Fb/install.dmg]
Sat 10 Apr 2021 17:38:49 BST | Detected install type as [DMG]
Sat 10 Apr 2021 17:38:49 BST | Waiting for other [/Applications/Yammer.app/Contents/MacOS/Yammer] processes to end
Sat 10 Apr 2021 17:38:49 BST | No instances of [/Applications/Yammer.app/Contents/MacOS/Yammer] found, safe to proceed
Sat 10 Apr 2021 17:38:49 BST | Installing [Yammer]
Sat 10 Apr 2021 17:38:49 BST | Mounting Image
Sat 10 Apr 2021 17:38:56 BST | Copying app files to /Applications/Yammer.app
Sat 10 Apr 2021 17:39:14 BST | Un-mounting [/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/tmp.U6LKs7Fb/Yammer]
Sat 10 Apr 2021 17:39:14 BST | [Yammer] Installed
Sat 10 Apr 2021 17:39:14 BST | Cleaning Up
Sat 10 Apr 2021 17:39:14 BST | Fixing up permissions
Sat 10 Apr 2021 17:39:14 BST | Application [Yammer] succesfully installed

To validate the installation, launch the Yammer app by pressing CMD+Space and typing “Yammer” and then Enter. Assuming everything works as expected, the next step is to repeat step 4 above (Deploy the bash script with Intune Scripting Agent) and assign it to your users.

What about other package types? APP or PKG?

This approach can be used for any macOS installer that can be triggered from the shell. The script attempts to determine the correct installer type from the downloaded file.

More examples using the same script can be found here:

• Microsoft Company Portal


• Microsoft Remote Desktop


• GitHub Desktop


• Visual Studio Code


• Zoom

The best way to get started is to download one of the example scripts and modify it for your application.

Some of the examples use weburls on Azure blob storage and others pull directly from the source download sites (like Company Portal). The script uses curl -OJL <url> to download the installer and create the temp file.

Note: If the app you are trying to deploy is provided to you as an .app file, you can compress the app into a ZIP and use the examples above.

All the examples include a function to handle Rosetta 2 deployment for Apple Silicon devices. That means these scripts can be deployed straight to an M1 Mac and it will automatically handle the installation of Rosetta 2 so that the application can run.

Troubleshooting

Using Microsoft Endpoint Manager admin center
Intune also reports the status of each script in the UI.

1. Open the Microsoft Endpoint Manager admin center.


2. Select Devices > macOS > Shell scripts and select the script you want to troubleshoot.


3. Click on Device Status and then select the device you are troubleshooting.


4. Click on Show details and Intune will display the last output from the script.

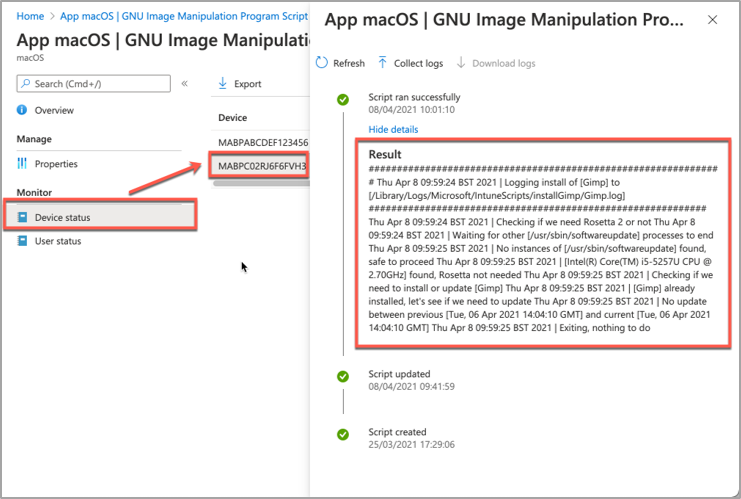

   Example screenshot of the GIMP app Device status in Intune
   If we need more information, we can use the Intune script agent to gather logs from the Mac for us remotely.

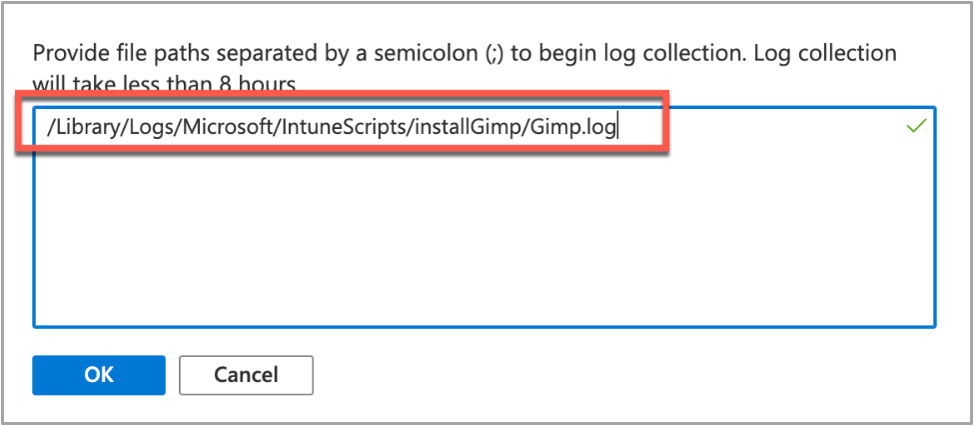

5. Click on Collect Logs and enter in the name of the log file you want to retrieve. In our example that is /Library/Logs/Microsoft/IntuneScripts/installGimp/Gimp.log.

   Example screenshot of collecting logs with the GIMP application in Intune




6. The next time that the script agent checks in (8 hour cycle), the logs will be returned to Intune. You can force this by having the end user open Company Portal and clicking Check Settings.




   Note: On the device, in the IntuneMDMDaemon log file you can see log upload requests and completions by searching for “LogUploadResultItem”.





   IntuneMDM-Daemon | I | 255380 | PersistenceManager | Storing LogUploadResultItem
   IntuneMDM-Daemon | I | 256078 | PersistenceManager | Getting all LogUploadResultItem
   IntuneMDM-Daemon | I | *235677 | PersistenceManager | Deleting all LogUploadResultItem
   IntuneMDM-Daemon | I | 256953 | PersistenceManager | Getting all LogUploadResultItem






7.  Once the logs have been returned, the Download logs button will be shown. Click this to download the device logs as a zip file.

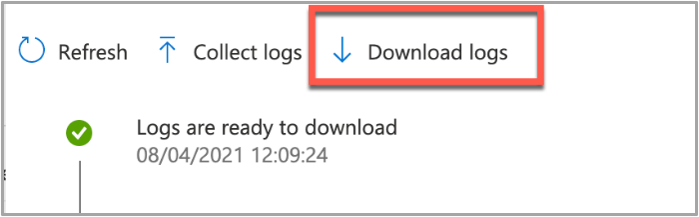

   Example screenshot of the “Download logs” button in Intune




8. Inside the zip file will be the file we requested, plus the two Intune script agent (user) and daemon (root) logs, which are always returned.

   Example screenshot of the Downloaded logs from Intune

To make sense of the logs, it’s useful to know the policy ID of the script we are troubleshooting. We can get this from the Microsoft Endpoint Manager admin center.

1. Open the Microsoft Endpoint Manager admin center.


2. Select Devices > macOS > Shell scripts.


3. Find the script in the list and click on it, make a note of the policyID in the browser URL. We will use it to filter the log

   In my example, the URL is: https://endpoint.microsoft.com/#blade/Microsoft_Intune_DeviceSettings/ConfigureWMPolicyMenu/overview/policyId/7edf5358-c157-437a-8bc0-0a4889b20ae4/policyType/1.

The easiest way to view the logs is via the Console app.

1. Press CMD+Space and type ‘Console’ and press Enter, this will open the Console app.


2. Click on File > Open and navigate to the IntuneMDMDaemon*log.


3. Paste the policyID from step 3 above into the search box and it should filter the log for only the lines referring to our script.

   Example screenshot of filtering out the IntuneMDMDaemon*log on a macOS device

The key things to look for in the IntuneMDMDaemon log are as follows:

• Running script policy PolicyID: 7edf5358-c157-437a-8bc0-0a4889b20ae4


• Script policy succeeded PolicyID: 7edf5358-c157-437a-8bc0-0a4889b20ae4

Note: You can also view the logs directly on the Mac if you have access. Use Console again to view them.

• /Library/Logs/Microsoft/Intune [For scripts that do not run as the end user]


• ~/Library/Logs/Microsoft/Intune [For scripts that do run as the end user]

Script Log

This is the log that is generated by each script so the output will be different depending on what you put in your script. The best way to view is in the Console app. Search for ‘Gimp’. The log file output should look very similar to the output we saw when we ran the script manually.

Example screenshot of the log output for the GIMP app on a macOS device

Version Reporting

One of the biggest problems with this approach of app deployment is that apps deployed in this way do not show up in the ‘managed apps’ list for each managed Mac in Intune. To help mitigate this a little, we can use Intune’s custom attribute feature to run a shell script on the Mac and return the version of our app.

We have an example custom attribute script to return the version of a Mac app here.

To deploy the custom attribute script:

1. Download the example script to ~Downloads. Open in Visual Studio Code and modify/test as required


2. Open the Microsoft Endpoint Manager admin center


3. Select Devices > macOS > Custom attributes > Add



   • Enter a Name and Description for the script and click Next


   • Set the data type of attribute to String


   • Select the ~/Downloads/fetchGimpversion.sh






4. Click Next


5. Assign Scope Tags if you need them, click Next


6. Under Required click Add group and search for an appropriate group to target the script to


7. Click Next, review and then Add to complete the assignment

The next time that the Intune macOS script agent checks-in to Intune, it will run the script and return the value. To see a list of the returned values:

1. Open the Microsoft Endpoint Manager admin center


2. Select Devices > macOS > Custom attributes


3. Select the custom attribute you created > Device Status

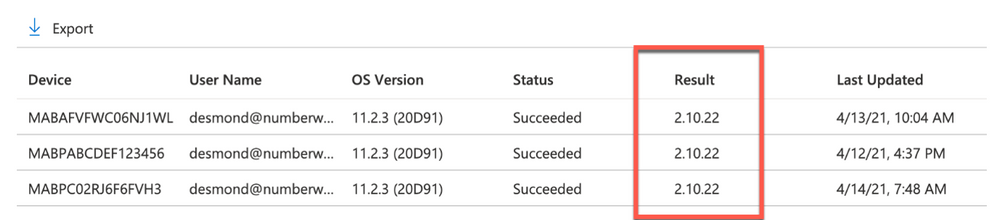

   Example screenshot of the previously created Custom attributes in Intune

This report can be exported to a CSV file if required.

Obviously, this is a basic example, but it could be expanded to return any information that you can gather from a shell script.

Summary

Hopefully this blog and example scripts have provided some guidance around the possibilities of deploying apps via the Intune script agent and Azure Blob storage (or other web hosting sites).

This approach is especially useful for applications that cannot be deployed via the other App deployment scenarios that Intune provides.

For more information on deploying scripts with Intune see our documentation here. We also have a broader set of shell script examples on the Intune team GitHub Repository.

Let us know if you have any questions by replying to this post or reaching out to @IntuneSuppTeam on Twitter.

Best Practices and sizing details for Hiveserver2 Interactive and LLAP daemons

by Contributed | Apr 27, 2021 | Technology

This article is contributed. See the original author and article here.

Introduction:

This document provides information about overall working of LLAP daemons and performance considerations. In general, performance tuning is an ongoing act and there is no silver bullet to solve all your performance issues. Performance improvements should be done in two stages, performance analysis and performance tuning. In the performance analysis step, goal is to find the bottlenecks and areas to focus; and the second step is do incremental tuning for the bottlenecks identified.

LLAP Architecture/Components:

 LLAP execution and sizing configurations:

The following are some of the configurations that can be adjusted based on your workload for improved performance. Please refer to Azure HDInsight LLAP sizing guide for detailed information here.

• Use dedicated YARN queue for LLAP daemons, this ensures the priority scheduling and resource management for other applications.

Total Memory available for LLAP queue per worker node can be calculated as follows:

This value depends on the total amount of memory available for all YARN containers on a node(yarn.nodemanager.resource.memory-mb) and the percentage of capacity configured for llap  queue (yarn.scheduler.capacity.root.llap.capacity).

Total memory for LLAP queue on worker node = Total memory available for all YARN containers on a node x Percentage of capacity for llap queue.

Please note: If your workload is read-only operations, then setting it as high as 90% of the capacity should work. However, if your workload is mix of update/delete/merge operations using managed tables, it’s recommended to give 85% of the capacity for llap queue. The remaining 15% capacity can be used by other tasks such as compaction etc. to allocate containers from the default queue. That way tasks in the default queue won’t deprive YARN of resources.

For E32 v3 worker, this value is (200 GB x 0.85) = 170 GB.

• Configure number of concurrent queries same to the for the peak usage scenario to avoid manual intervention because Autoscale events don’t change the Hive configuration Maximum Total Concurrent Queries in Ambari. This means that the Hive Server 2 Interactive Service can handle only the given number of concurrent queries at any point of time even if the Interactive Query daemons count are scaled up and down based on load and schedule.

Note (Limitation wrt AutoScaling):

In case of autoscale-enabled Interactive Query clusters, an autoscale up/down event also scales up/down the number of Interactive Query daemons to the number of active worker nodes. The change in the number of daemons is not persisted in the num_llap_nodes configuration in Ambari. If Hive services are restarted manually, the number of Interactive Query daemons is reset as per the configuration in Ambari.

If the Interactive Query service is manually restarted, you need to manually change the num_llap_node configuration (the number of node(s) needed to run the Hive Interactive Query daemon) under Advanced hive-interactive-env to match the current active worker node count.

•  Configure  yarn.scheduler.maximum-allocation-vcores.

This value indicates the maximum number of virtual CPU cores for every container request at the Resource Manager. Requesting a higher number of vcores than this value won’t take effect. It’s a global property of the YARN scheduler. For LLAP daemon container, this value can be set to 75% of total available vcores. The remaining 25% should be reserved for Node Manager, Data Node, and other services running on the worker nodes.

For  E32 v3 VMs and 75% of total 32 vcores can be used by LLAP daemon container, the recommended value is 24.

•   Configure LLAP daemon size:

LLAP daemon container size = (Total memory for LLAP queue on a workernode) – (Tez AM memory per node) – (Service Master container size)

There is only one Service Master (Application Master for LLAP service) on the cluster spawned on one of the worker nodes. For calculation purpose, we consider one service master per worker node.

For E32 v3 worker node, HDI 4.0 - the recommended value is (170 GB - 4 GB - 1 GB)) = 165 GB

•  Number of executors per LLAP daemon:

This value depends on the number of vcores, the amount of memory used per executor, and the amount of total memory available for LLAP daemon container. The number of executors can be oversubscribed to 120% of available vcores per worker node.

For E32 v3, the recommended value for num of executors is (32 vcores x 120%) ~= 38 on each worker node considering 3GB per executor.

• Configure hive.llap.io.threadpool.size to value same as number of executors. 

Recommendation is to monitor heap usage at peak workloads and increase the number of executors making sure that Number of executors times heap usage per executor does not exceed total llap daemon heap size.  

For example, let’s assume that the LLAP daemon is configured for 20 executors and 80 GB of heap size, but your max heap space usage is 60GB. Then the average use per executor is 3 GB (60 GB divided by 20 executors). In such cases, your configured heap is underutilized, and you still have a 20GB room (80 GB – 60 GB). You can increase number of executors by 6 (20 GB/3GB ~= 6) from 20 to 26. This provides increased task parallelism and may result into higher throughput.   

A thumb rule would be, for each LLAP daemon,

(Number of executors x Heap size per executor (Tez container size)) <= (total heap size for LLAP daemon) 

You can get the information for heap space usage and executor’s usage from Grafana dashboards for each individual daemon as well as the average for all daemons. Pick the max value for calculations. 

Increasing number of executors beyond the above-mentioned thumb rule may provide you better performance at a times but can also result into occasional failures and instability. Please refer to HDInsight Hive/LLAP sizing guide for details. 

•   Configuration: hive.llap.daemon.yarn.container.mb:

LLAP daemon runs as a YARN container on each worker node. The total memory size for the LLAP daemon container depends on the following factors. LLAP daemon container memory consists of the following components :

• Head room 


• Heap memory used by executors (Xmx) 


• In-memory cache per daemon (its off-heap memory size, not applicable when SSD cache is enabled) 


• In-memory cache metadata size (applicable only when SSD cache is enabled) 

Headroom size: This size indicates a portion of off-heap memory used for Java VM overhead (metaspace, threads stack, GC, data structures, etc.). Generally, this overhead is about 6% of the heap size (Xmx). To be on the safer side, this value can be calculated as 6% of total LLAP daemon memory size. 

For E32 v3, the recommended value is ceil(170 GB x 0.06) ~= 10 GB. 

Heap size(Xmx:( It is amount of heap memory available for all executors. Total Heap size = Number of executors x 3 GB 

For E32 v3, this value is 38 x 3 GB = 114 GB 

LLAP cache size: LLAP supports both in-memory (RAM) and SSD cache. The cache size calculation would differ when SSD cache is enabled. Setting hive.llap.io.allocator.mmap = true will enable SSD caching. When SSD cache is enabled, some portion of the RAM memory will be used to store the metadata (headers, index, etc) for the cached data on SSD. The metadata is expected to be approximately 8% of SSD cache size and it is stored in off-heap memory. 


SSD Cache in-memory metadata size = LLAP daemon container size – (Head room + Heap size) 

For E32 v3, with HDI 4.0, SSD cache in-memory metadata size = 170 GB - (4 GB + 114 GB) = 52 GB 

When SSD cache is disabled, the in-memory cache is amount of memory that is left after taking out Headroom size and Heap size from the LLAP daemon container size. 

In-memory(off-heap) cache size = LLAP daemon container size – (Head room + Heap size) 

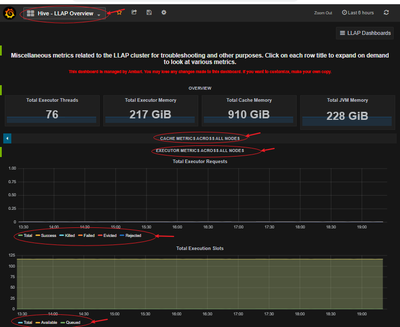

Recommendation is to monitor the LLAP cache uses by checking Grafana dashboards or running sample workload queries via beeline and checking execution summary. LLAP is optimized for interactive queries, if you are running ETL workloads that refer to data only once would not benefit from caching. In such cases, you can disable caching by setting “hive.llap.io.enabled=false” at session level.  

•  Adjusting Map Join memory:

This configuration determines the threshold for MapJoin selection by Hive optimizer that considers over subscription of memory from other executors to have more room for in-memory hash tables to allow more map join conversions. Considering 3 GB per executor, this size can be oversubscribed to 3 GB, but some heap memory may also be used for sort buffers, shuffle buffers, etc. by the other operations.

For E32 v3, with 3 GB memory per executor, it's recommended to set this value to 2048 MB.

•  The values for num_llap_nodes, num_llap_nodes_for_llap_daemons are recommended to be set as same as the number of LLAP worker nodes.


• Depending the volume of data being queried and result, tune tez.grouping.max.size and tez.grouping.min.size. Decrease for better latency or Increase for more throughput.

Data Storage Format: 

Data storage format plays a critical role in Hive/LLAP performance.  

• It is recommended to use ORC data storage format for taking advantage of efficient compression, fast reads. ORC gives the best performance overall.  

• Avoid using Text-based storage formats for large production systems. If you have data generated in Text formats (CSV, JSON, etc.) , you can create a Hive external hive table, and then convert it to ORC format for regular querying and analysis.  (For example: CREATE TABLE orc_table STORED AS ORC AS SELECT * FROM text_table) 

Both ORC and Parquet provide a highly efficient way to store Hive data in a columnar format. LLAP implementation natively supports ORC and Parquet where LLAP does not have to perform additional encoding/decoding steps. Also, it supports efficient vectorized operations on the data stored in these formats. 

Hive/LLAP optimizer and execution engine can make use of metadata/indexes that are stored alongside data in ORC or Parquet format. Some of the queries can directly be served from metadata/indexes without requiring scanning through the whole data.  

In the case of text formats (CSV, JSON, etc.), LLAP would require additional steps to encode/decode data before it is stored in the cache and used in vectorized operations. This overhead may contribute to delays in processing the data.   

Depending on your environment, you can further tune your ORC storage formats to optimize Hive/LLAP performance by using bloom filters, configuring compression type, stripe size, using partitions, and buckets. 

Hiveserver2 Interactive High Availability

Hiveserver2 Interactive (HSI) supports high availability (HA) in the form of an Active/Passive standby configuration. Only one HSI can be in Active mode, whilst one or more additional HSI instances are in passive standby mode and ready to takeover on Active HSI failure.

To connect to the active leader HSI instance, clients use dynamic service discovery. For example:

jdbc:hive2://<zookeeper_quorum>;serviceDiscoveryMode=zooKeeperHA;zooKeeperNamespace=hiveserver2-interactive

It is important to note that zooKeeperHA service discovery mode is distinct from zooKeeper discovery mode used with traditional Hiveserver2.

With zooKeeperHA, the Hive connection will iterate through the list of HSI instances registered in ZooKeeper and identify the elected leader. The node information (hostname:port) for the leader is returned to the client, allowing it to connect to the Active HSI instance.

If the Active HSI loses its leadership (for example, a long GC pause resulting in session/connection timeout or network split) leadership is revoked.

Before implementing HSI HA you should confirm that all JDBC and ODBC drivers used within your organization include support for zooKeeperHA service discovery.

LLAP Resource Monitoring and Recommendations 

1. Hive Interactive UI: 

Currently, Hive Interactive UI does not work for ESP LLAP clusters. The following workaround can be applied to make it work. 

Step-1:  Add the below configs in Ambari:

hive.server2.webui.use.spnego -> true 

hive.server2.webui.spnego.principal -> HTTP/_HOST@domain.com e.g. HTTP/_HOST@SECUREHADOOPRC.ONMICROSOFT.COM  for tip clusters 

hive.server2.webui.spnego.keytab ->/etc/security/keytabs/spnego.service.keytab 

Custom hive-site: 

hive.users.in.admin.role -> Comma Separated list of users who can access UI e.g. rsadmin2 (for tip clusters) or  *  if we want all users to be able to access.

Step – 2:  Restart Hive   

All the pages work except for /logs in HS2UI - need to backport [HIVE-14737] Problem accessing /logs in a Kerberized Hive Server 2 Web UI – ASF JIRA (apache.org) 

Sample Curl command to access these pages programmatically: 

curl  –negotiate -u :  http://hn0-kevx5t.securehadooprc.onmicrosoft.com:10502/jmx 

The following table details the available UI pages and useful endpoints for metric scraping etc.

•   LLAP Monitor

Each LLAP daemon has a Monitor that listens on port 15002 by default. You can use the LLAP status command or the LLAP Daemons tab on the Hiveserver2 Interactive Web UI to quickly determine where the LLAP daemons are running.

• LLAP IO Counters

Set hive.tez.exec.print.summary to true in order to report data and metadata cache hits and misses for each query you run.

• Grafana Dashboards   

LLAP Executor metrics and LLAP Cache metrics Dashboard: 

Make sure your execution slots are available to run the query fragments. Also, check Evicted, Killed and Rejected task requests. If more than 90% of your execution slots are occupied, then system you may have to scale-out your LLAP cluster to be able to handle increased workload. 

•   Sampling of workload

Run sample queries (especially long running) from your workload and find out how many resources they consume for a better understanding of the overall workload. Also, accommodate for any future additional workload. 

 Using beeline, you can set the following at session level and run your queries. 

set hive.tez.exec.print.summary=true; 

set hive.query.results.cache.enabled=false; 

• Analyze query execution summary

Find out time consumed in different stages of query processing.  

• Analyze LLAP Cache usage:

Usually, higher the DATA_HIT number better the performance as data can be directly read from the cache and no additional IO is required.  

• Analyze LLAP Tasks execution pattern

With an active workload management plan, you will have to run your sample queries with actual user, group or app name based on your query pool mapping in your resource plan. 

More time spent in SPECULATIVE_RUNNING and SPECULATIVE_QUEUED would mean that the query pool corresponding to the query needs more resource in the pool and it is using resources from the other query pools when possible. However, these speculative tasks will get evicted when other query pools need resources to serve its queries.    

References:

https://docs.microsoft.com/en-us/azure/hdinsight/interactive-query/hive-llap-sizing-guide

https://docs.microsoft.com/en-us/azure/hdinsight/interactive-query/apache-interactive-query-get-started

https://docs.microsoft.com/en-us/azure/cloud-services/cloud-services-sizes-specs#dv2-series

“Invoice optimization, one sip at a time” ? – The Intrazone podcast

by Contributed | Apr 27, 2021 | Technology

This article is contributed. See the original author and article here.

What do you do when you realize you are using too much paper? Rifling through filing cabinets, storage boxes and stacks of paper in search of necessary documents leads to productivity loss and environmental impact.

The Intrazone continues to spotlight Microsoft partners, the people and companies who deliver solutions and services to empower our customers to achieve more. In our 10^th partner episode, we talk with Jason Burian (VP of product management | KnowledgeLake) and his customer, Tye Eyden (Collaboration business systems analyst | New Belgium Brewing).

In this episode, we focus on the needs of a growing company, New Belgium Brewing, faced with numerous challenges. They desperately wanted to move away from paper-based processes. With their portfolio of beers growing, and a second brewing facility coming online, they needed help from partner, KnowledgeLake, to optimize digitize invoices, improve employee time and efficiency while maintaining environmental stewardship, making world class beer, and having fun.

Like the Lorax, KnowledgeLake speaks for the trees. And we’re all listening.

Grab your favorite bevvy, and … on with the show.

https://html5-player.libsyn.com/embed/episode/id/18867890/height/90/theme/custom/thumbnail/yes/direction/backward/render-playlist/no/custom-color/247bc1/

Subscribe to The Intrazone podcast! Listen this partner episode on KnowledgeLake with New Belgium Brewing + show links and more below.

Left-to-right: Jason Burian (VP of product management | KnowledgeLake) and his customer, Tye Eyden (Collaboration business systems analyst | New Belgium Brewing). [The Intrazone guests]

Link to articles mentioned in the show:

• Hosts and guests



  • Mark Kashman | @mkashman | The Kashbox [co-host]


  • Chris McNulty|@cmcnulty2000 [co-host]


  • Jason Burian | LinkedIn | Twitter || KnowledgeLake (Twitter | LinkedIn | Facebook | YouTube) [guest]


  • Tye Eyden | LinkedIn | Twitter || New Belgium Brewing (Twitter | LinkedIn | Facebook | YouTube) [guest]


  • SharePoint Facebook | @SharePoint | SharePoint Community Blog | UserVoice


  • OneDrive Facebook | @OneDrive | OneDrive Community Blog | UserVoice






• Articles and sites



  • “New Belgium leverages KnowledgeLake solution to support national expansion” [KnowledgeLake customer case study]


  • Microsoft 365 Content Services Partner Program


  • Microsoft Partner Network


  • Microsoft Tech Community Home


  • Stay on top of Office 365 changes


  • Get started with Office Online in Office 365


  • Listen and subscribe to other Microsoft podcasts: https://aka.ms/microsoft/podcasts






• Events


• Microsoft 365 Virtual Marathon 2021 (April 26-28, 2021)


• The AIIM Conference (Apr.27-29.2021)


• Ability Summit (May.5-6.2021)


• Teams Nation (May 12th, 2021)


• SharePoint Saturdays Next up, on a Friday, May 14th: M365’Philly (Site)


• Microsoft Build (May 25-27.2021)


• ESPC21 (June.1-2.2021)


• Microsoft 365 Collaboration Summit (June.8-10)

Subscribe today!

Listen to the show! If you like what you hear, we’d love for you to Subscribe, Rate and Review it on iTunes or wherever you get your podcasts.

Be sure to visit our show page to hear all the episodes, access the show notes, and get bonus content. And stay connected to the SharePoint community blog where we’ll share more information per episode, guest insights, and take any questions from our listeners and SharePoint users (TheIntrazone@microsoft.com). We, too, welcome your ideas for future episodes topics and segments. Keep the discussion going in comments below; we’re hear to listen and grow.

Subscribe to The Intrazone podcast! Listen this partner episode on KnowledgeLake with New Belgium Brewing.

Thanks for listening!

The SharePoint team wants you to unleash your creativity and productivity. And we will do this, together, one partner at a time.

The Intrazone links

• Show Page: https://aka.ms/TheIntrazone


• Apple Podcasts


• Google Podcasts


• Spotify


• Pandora


• Amazon Music


• Stitcher


• TuneIn


• RadioPublic


• iHeart


• RSS

+ Listen to other Microsoft podcasts at aka.ms/microsoft/podcasts.

Left to right [The Intrazone co-hosts]: Chris McNulty, director (SharePoint/Viva – Microsoft) and Mark Kashman, senior product manager (SharePoint – Microsoft).

The Intrazone, a show about the Microsoft 365 intelligent intranet (aka.ms/TheIntrazone)
